IP5209 Synchronous Switching Charger & Boost Converter IC

High-Efficiency Power Management Solution

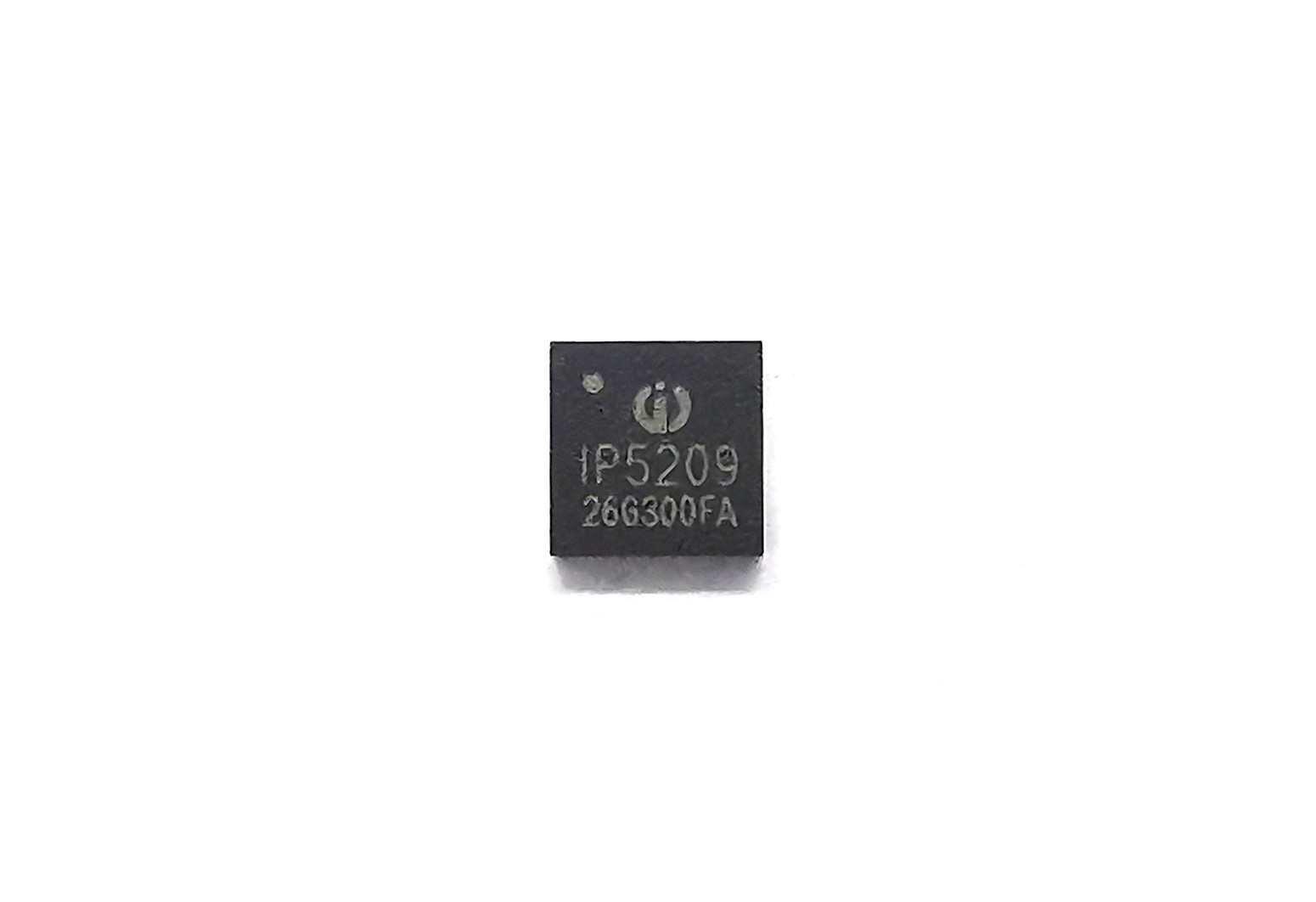

Introducing the Injoinic Technology IP5209, a versatile synchronous switching charger and boost converter integrated circuit. This listing is for two brand-new pieces, conveniently supplied in a reel package to ensure pin integrity. The IP5209, also marked as IP 5209, is engineered for superior performance in a wide range of power management applications. Its compact 24-QFN package makes it an ideal choice for space-constrained electronic devices, providing both battery charging and voltage boosting capabilities in a single chip. This component is available for your next electronics project or repair.

Advanced Synchronous Charging

The core of the IP5209 is its highly efficient synchronous switching charger. This technology minimizes power loss during the battery charging cycle, which translates to less heat generation and faster, safer charging for lithium-ion and other battery types. It is an essential component for developing modern portable electronics such as power banks, wireless speakers, and other mobile gadgets. By integrating this advanced charging feature, you can enhance the overall performance and lifespan of the battery-powered devices you design or repair. Get this reliable charging IC for your builds.

Integrated Boost Converter Functionality

Beyond its charging capabilities, the IP5209 features a powerful synchronous boost converter. This function allows the chip to step up a lower input voltage from a battery to a higher, stable output voltage. This is critical for powering various components within a device, such as display backlights, amplifiers, or other circuits that require a voltage greater than what the battery directly provides. This dual-functionality simplifies circuit design, reduces the total number of components on a printed circuit board, and ultimately lowers manufacturing costs while improving reliability.

Technical Specifications and Details

This high-performance integrated circuit is manufactured by Injoinic Technology, a trusted name in power management solutions. The component is identifiable by its markings, IP5209 or IP 5209, and is housed in a 24-pin Quad-Flat No-leads (QFN) package. This surface-mount package is designed for automated assembly and helps create very compact and low-profile electronics. When you purchase this item, you will receive two pieces of the IP5209, ready for integration into your power-sensitive applications. The product is in stock and ready for fast worldwide shipping.

Professional Installation Required

Please note that replacing or installing the IP5209 integrated circuit requires specialized skills and equipment. Due to its QFN package, a hot-air soldering station and a pre-heating station are essential for proper mounting and to avoid damaging the component or the circuit board. This product is intended for experienced technicians, electronics engineers, and skilled hobbyists who are comfortable with surface-mount device (SMD) rework. We advise against attempting installation without the necessary tools and expertise to ensure a successful outcome.

Handling and Preparation Guidelines

The IP5209 is a device sensitive to Electrostatic Discharge (ESD). Always use proper ESD protection, such as wrist straps and anti-static mats, when handling this chip to prevent permanent damage from static electricity. Furthermore, to ensure component integrity during the soldering process, it is mandatory to prebake this chip at 125 degrees Celsius for 24 hours. This critical step removes any absorbed moisture, which could otherwise turn into steam and cause internal damage (the 'popcorn effect') when exposed to high reflow soldering temperatures.

Guaranteed Quality and Authenticity

We are committed to providing only high-quality components. The IP5209 chips offered for sale are brand new and have never been used. They come directly from a reel, which is the standard packaging for ensuring protection and ease of use in manufacturing environments. The images displayed on this page are of the actual item you will receive, so you can order with confidence. For your peace of mind, this product also includes a 180-day warranty, safeguarding your purchase against any potential defects. You can trust you're getting an authentic and reliable part.

Order and Worldwide Delivery

This essential power management IC is available and ready for your projects. Whether you're undertaking a complex repair or developing a new electronic product, the IP5209 offers the performance and integration you need. We facilitate a straightforward and secure way to order the components you require. With fast international delivery options, you can receive your parts quickly, no matter where you are located. Add this versatile synchronous switching charger and boost converter to your component inventory and experience its superior capabilities firsthand.
