ASRock H510 Pro BTC+ Crypto Mining Motherboard

Dedicated Crypto Mining Motherboard

Introducing the ASRock H510 Pro BTC+ Crypto Mining Board, a motherboard specifically engineered for the demanding world of cryptocurrency mining. This board, model 90 MXBGL0 A0UAYZ, is built with the Intel H510 chipset, offering a stable and efficient platform for your mining operations. Its design prioritizes multi-GPU support and system stability, making it an excellent choice for professional miners and enthusiasts looking to maximize their mining output. Experience robust performance tailored for continuous operation, a hallmark of ASRock's Pro BTC series.

Powerful Processor and Memory Support

The ASRock H510 Pro BTC+ supports both 10th Gen and 11th Gen Intel® Core™ Processors on the LGA1200 socket, providing flexible CPU options. It features a single DDR4 DIMM slot, accommodating up to 32GB of system memory. Supported speeds include DDR4 3200, 2933, 2800, 2666, 2400, and 2133 MHz, compatible with non-ECC, un-buffered memory and ECC UDIMM modules operating in non-ECC mode. This ensures ample memory bandwidth for mining algorithms and system responsiveness, crucial for efficient mining.

Integrated Graphics and HDMI Output

This mining motherboard supports integrated graphics capabilities depending on the installed CPU. 11th Gen Intel® Core™ Processors enable Intel® Xe Graphics Architecture (Gen 12), while 10th Gen processors support Gen 9 Graphics. The board features an HDMI port for display output. With an 11th Gen CPU, it supports HDMI 2.0 with resolutions up to 4K x 2K (4096x2160) @ 60Hz. With a 10th Gen CPU, it supports HDMI 1.4, offering up to 4K x 2K (4096x2160) @ 30Hz for clear visuals.

Optimised Expansion for Mining Rigs

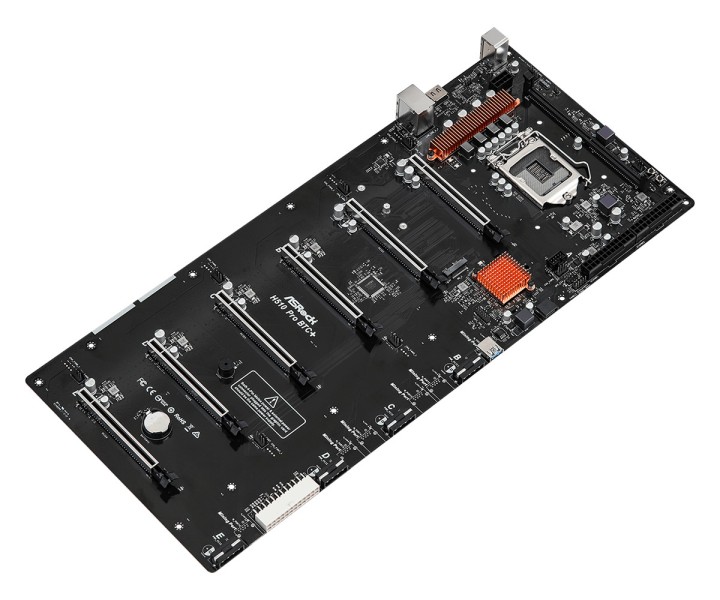

Designed for multi-GPU setups, the ASRock H510 Pro BTC+ boasts six PCI Express 3.0 x16 slots, allowing for extensive graphics card connectivity essential for crypto mining. Additionally, it includes one dedicated Mining Port (M_Port1 at x1), further enhancing its mining capabilities. This robust slot configuration, including the ASRock Steel Slot design, provides the necessary bandwidth and stability for running multiple GPUs simultaneously, maximizing your mining rig's potential and hash rate for various cryptocurrencies.

Comprehensive Connectivity Options

The motherboard offers a range of I/O ports including one PS/2 Mouse/Keyboard Port, two USB 2.0 ports, and two USB 3.2 Gen1 ports, all with ESD Protection. Networking is handled by the Giga PHY Intel® I219V, providing reliable Gigabit LAN (10/100/1000 Mb/s). For storage, it includes one SATA3 6.0 Gb/s connector supporting NCQ, AHCI, and Hot Plug, alongside one M.2 Socket (M Key type 2260/2280/22110) for M.2 SATA3 6.0 Gb/s modules.

Engineered for Mining Stability

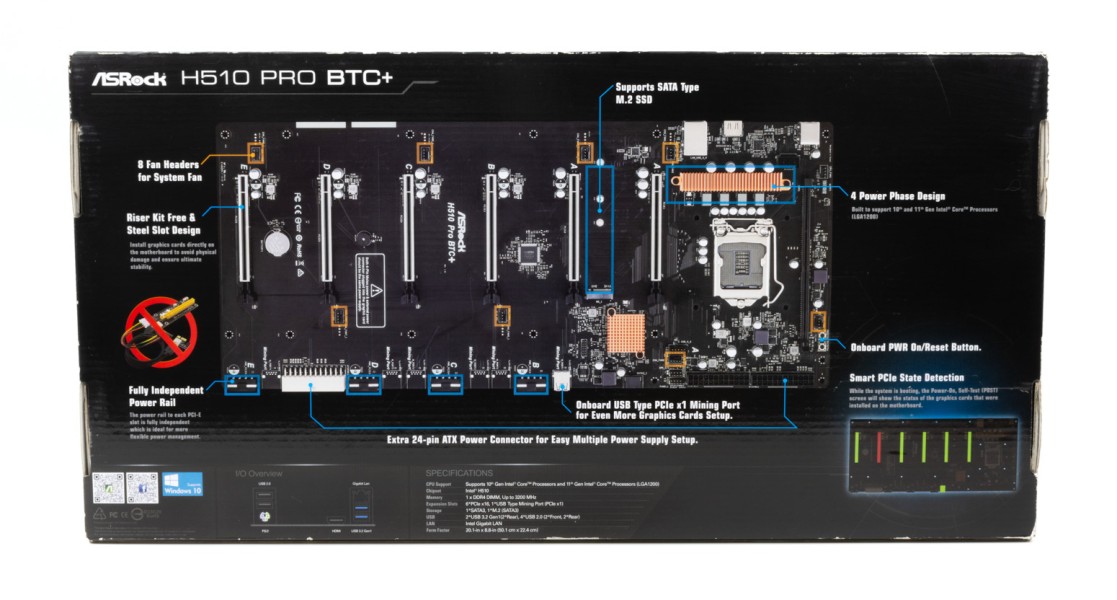

This board is specifically designed for mining, featuring onboard power and reset buttons, eight fan headers for optimal cooling, and additional power connectors for enhanced system stability under heavy loads, including an extra 24-pin ATX Power Connector. It supports Microsoft Windows® 10 64-bit and Windows® 11 64-bit. Linux support for Ubuntu 16.04 LTS and Fedora 25 is available with basic function support. Smart PCIe State Detection aids in troubleshooting mining rig issues effectively.

Premium Build Quality and Protection

The ASRock H510 Pro BTC+ incorporates ASRock Super Alloy components, including a Premium 50A Power Choke and Solid Capacitor design for long-term durability. The Sapphire Black PCB and High Density Glass Fabric PCB contribute to its robustness. ASRock Full Spike Protection safeguards against voltage spikes. The unique Riser Kit Free design simplifies setup, and the board supports Fan Multi-Speed Control. These features ensure reliable performance, critical for 24/7 mining operations and system longevity.

Physical Specifications and Inclusions

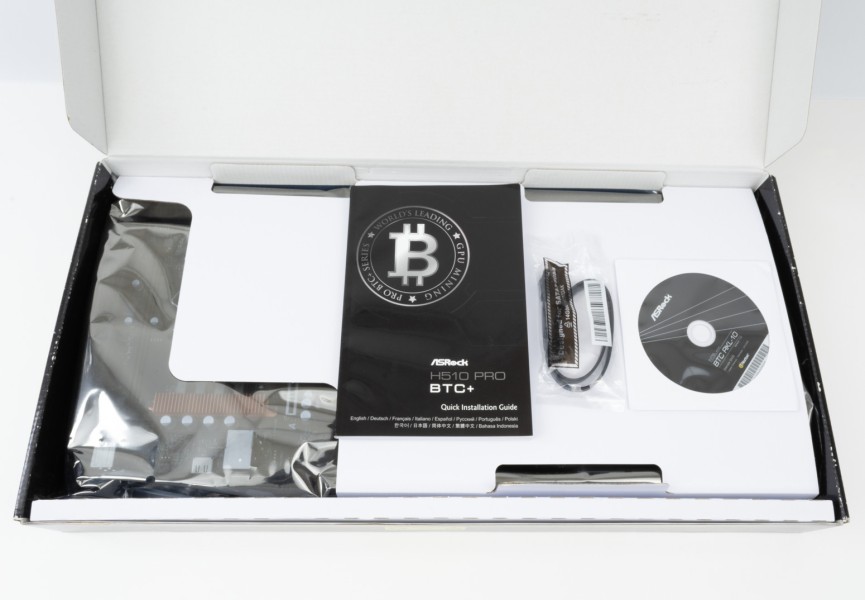

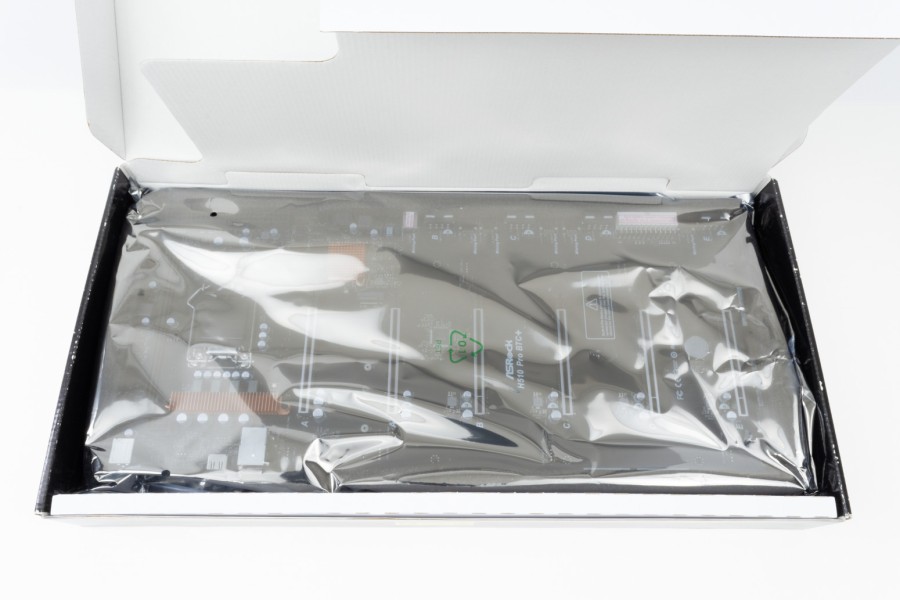

The ASRock H510 Pro BTC+ crypto mining board measures 51 cm (20.1 inches) in length and 22.4 cm (8.8 inches) in width, accommodating various mining rig setups. This brand-new, open-box store display model comes in its original packaging. Included are an installation CD, a comprehensive user manual, a SATA data cable, and it also comes with a 180-day warranty to ensure peace of mind. This motherboard provides a fully independent power rail design for enhanced stability.
