ASRock H510 Pro BTC+ Crypto Mining Motherboard Intel

ASRock H510 Pro BTC+ Crypto Mining Motherboard Overview

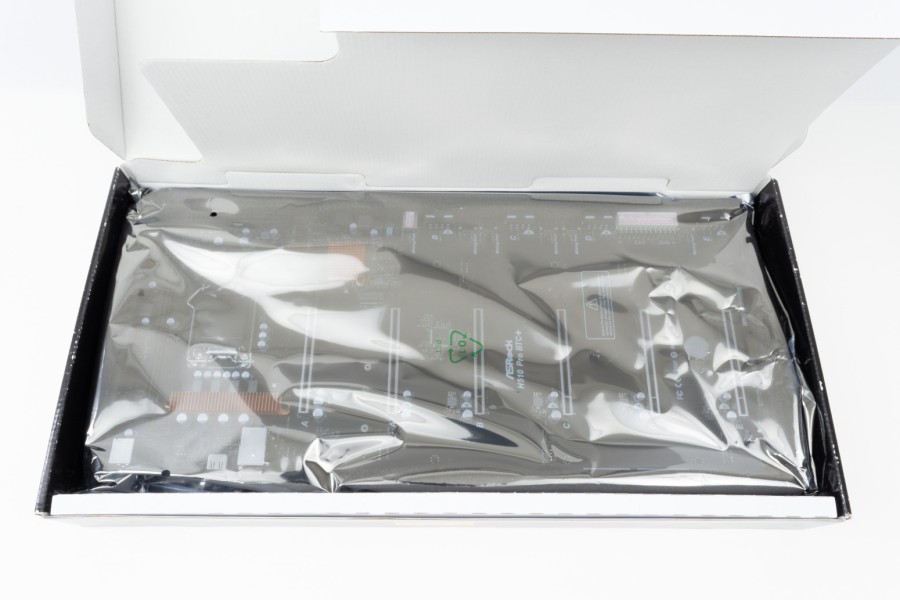

The ASRock H510 Pro BTC+, model 90 MXBGL0 A0UAYZ, is a specialized crypto mining motherboard engineered for dedicated cryptocurrency mining operations. Built around the reliable Intel H510 chipset, this board provides a stable and efficient platform for your mining rig. It’s designed to support multiple graphics cards, ensuring optimal hashing power. This motherboard is a brand-new item, previously a store display model, and comes complete with its original box, installation CD, user manual, and a SATA data cable, offering excellent value for serious miners. It also includes a 180-day warranty for peace of mind.

Powerful CPU and Memory Compatibility

This motherboard supports a wide range of processors, including 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors, fitting the LGA1200 socket. For system memory, it features a single DDR4 DIMM slot that supports DDR4 speeds of 3200, 2933, 2800, 2666, 2400, and 2133 MHz. It accommodates non-ECC, un-buffered memory and even ECC UDIMM memory modules (operating in non-ECC mode). The maximum system memory capacity is a substantial 32GB, providing ample resources for demanding mining software and operating systems.

Integrated Graphics and Display Options

The ASRock H510 Pro BTC+ offers integrated graphics capabilities that vary with your choice of CPU. 11th Gen Intel® Core™ Processors enable Intel® Xe Graphics Architecture (Gen 12), while 10th Gen Intel® Core™ Processors support Gen 9 Graphics. For display output, the board is equipped with an HDMI port. With an 11th Gen CPU, it supports HDMI 2.0, delivering a maximum resolution of 4K x 2K (4096x2160) @ 60Hz. When paired with a 10th Gen CPU, it supports HDMI 1.4 with up to 4K x 2K (4096x2160) @ 30Hz.

Optimized Expansion for Mining Rigs

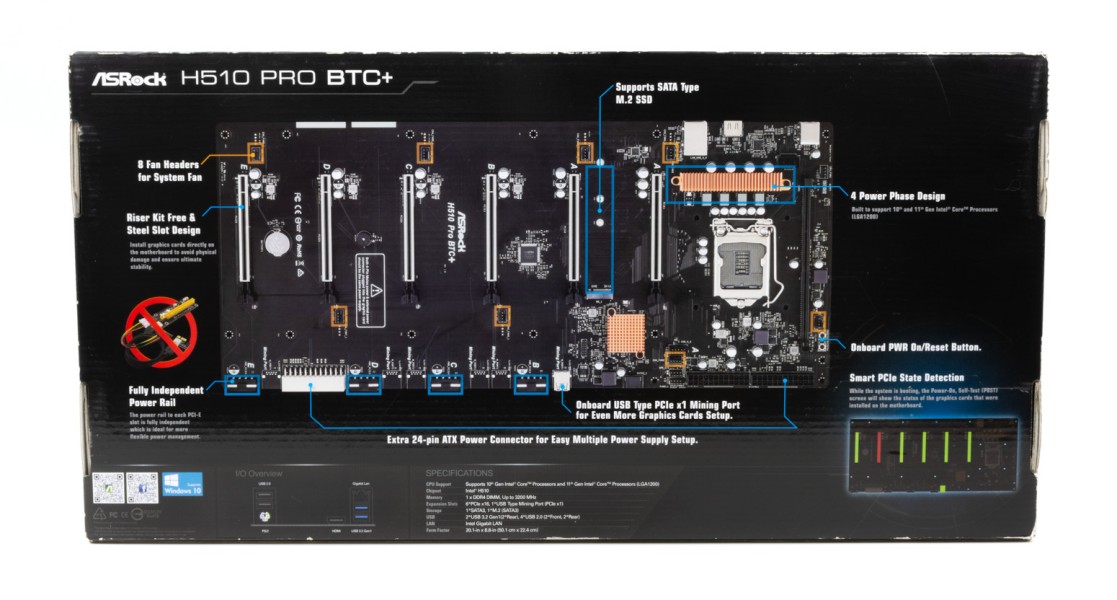

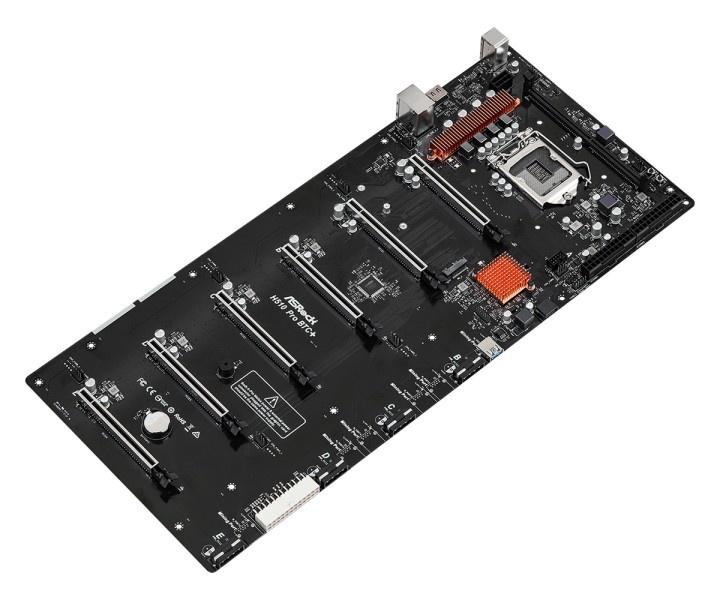

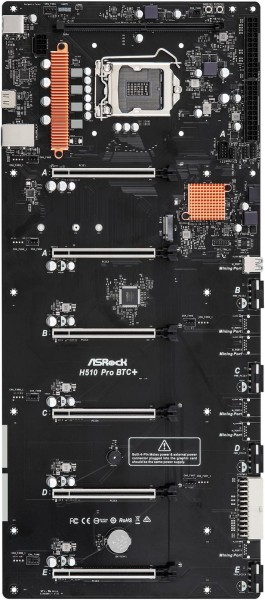

Designed specifically for crypto mining, the ASRock H510 Pro BTC+ features an impressive array of six PCI Express 3.0 x16 slots, allowing for the installation of multiple graphics cards to maximize your mining output. Additionally, it includes one dedicated Mining Port (M_Port1 at x1) for further expansion. The board boasts a Riser Kit Free design and ASRock Steel Slots for enhanced durability and secure GPU mounting, crucial for long-term mining operations. This robust slot configuration makes it ideal for building high-performance cryptocurrency mining systems.

Comprehensive Connectivity and Networking

For essential connectivity, the rear panel includes one PS/2 Mouse/Keyboard Port, one HDMI Port, two USB 2.0 Ports, and two USB 3.2 Gen1 Ports, all featuring ESD Protection for enhanced durability. Networking is handled by the reliable Giga PHY Intel® I219V, providing Gigabit LAN speeds of 10/100/1000 Mb/s. The RJ-45 LAN port also features LED indicators for activity and speed. This ensures stable and fast network access, vital for uninterrupted mining performance and pool connectivity. The board dimensions are 51 cm (20.1 in) in length and 22.4 cm (8.8 in) in width.

Versatile Storage and OS Support

The motherboard provides flexible storage solutions with one SATA3 6.0 Gb/s connector, supporting NCQ, AHCI, and Hot Plug functionalities. It also features one M.2 Socket (M Key), compatible with M.2 SATA3 6.0 Gb/s modules of type 2260, 2280, and 22110. In terms of operating system compatibility, the ASRock H510 Pro BTC+ supports Microsoft Windows® 10 64-bit and Windows® 11 64-bit. Basic function support is also available for Linux distributions like Ubuntu 16.04 LTS and Fedora 25, though full Linux functionality may vary due to system compatibility.

Premium Build Quality and Durability Features

ASRock has incorporated its Super Alloy design into the H510 Pro BTC+, ensuring exceptional stability and longevity. This includes a Premium 50A Power Choke, a Sapphire Black PCB, and a High Density Glass Fabric PCB, which protects against electrical shorts caused by humidity. Further enhancing its robustness are ASRock Steel Slots for graphics cards, ASRock Full Spike Protection for all USB, audio, and LAN ports, and a Solid Capacitor design, ensuring reliable performance for extended mining sessions and overall system durability for your cryptocurrency farm.

Specialized Mining Enhancements and Power Stability

This board is packed with features tailored for mining. It includes an Onboard Power On/Reset Button for easy operation without a case, and eight fan headers with Fan Multi-Speed Control for optimal cooling. Additional power connectors, including an extra 24-pin ATX power connector, ensure advanced system stability under heavy load, alongside a 4 Power Phase design and Fully Independent Power Rail. Smart PCIe State Detection helps in troubleshooting, while the Intel® LAN provides superior throughput for reliable network communication, critical for consistent mining income.
