TPS51120 Dual Step Down Controller QFN32 (2 Pack)
Discover the TPS51120 Dual Synchronous Step Down Controller, QFN32. This 2-pack of brand new chips is perfect for your power management needs. Ensure proper ESD handling and prebaking. Fast delivery with tracking across Europe and worldwide. Product Code: TPS51120
High-Efficiency Power Conversion Solution
Introducing the Texas Instruments TPS51120, a high-performance dual synchronous step-down controller designed for demanding power management applications. This listing provides two brand new units, conveniently packaged in a QFN32 format for compact integration into your electronic designs. The TPS51120 is renowned for its efficiency and reliability, making it a premier choice for engineers seeking optimized power delivery. These integrated circuits, such as the TPS51120RHB variant, are essential for managing multiple voltage rails within sophisticated electronic systems, offering precise regulation and robust performance for diverse devices.
Advanced Features of the TPS51120 Controller
The TPS51120 IC stands out with its dual-channel capability, enabling independent control of two separate step-down converters from a single chip, often marked as 51120. This feature simplifies power supply design and reduces the overall component count. Its synchronous rectification architecture significantly contributes to higher efficiency, particularly under heavy load conditions, by minimizing power losses. The QFN32 package ensures excellent thermal performance and a small footprint, crucial for space-constrained applications. This controller provides precise voltage regulation for stable power.
Versatile Applications for Power Management
This versatile dual synchronous step-down controller, the TPS51120, is widely utilized in a variety of electronic devices. Common applications include notebook and laptop computers for managing core, I/O, and chipset voltages, often requiring reliable ICs like the TPS 51120 TI. It's also ideal for embedded systems, point-of-load (POL) converters, and other battery-powered equipment where efficient power conversion is critical. Its ability to handle multiple power rails makes it a go-to solution for complex digital systems and consumer electronics.
Advantages of Integrating the TPS51120
Integrating the TPS51120 into your designs brings several key benefits. Its high efficiency translates to reduced power consumption and less heat generation, contributing to overall system reliability and longevity. The compact QFN32 package allows for greater power density, saving valuable board space in modern electronics. Furthermore, Texas Instruments' reputation for quality ensures dependable performance from components like the 51120RHB. This controller simplifies complex power designs by consolidating multiple functions into a single integrated circuit, streamlining the development and manufacturing process for efficient power management.
Essential Handling and Installation Guidelines
Proper handling and installation are paramount when working with the TPS51120 integrated circuit. This is an Electrostatic Discharge (ESD) sensitive device, so stringent ESD protection practices must be followed throughout the handling and assembly process to prevent any damage. Replacing this QFN32 chip requires specialized skills and equipment, including a hot-air soldering station and a pre-heating station for precise temperature control during SMT rework. Attempting installation without the necessary tools and expertise can lead to component or board failure.
Crucial Prebaking for Component Integrity
To ensure the integrity of the TPS51120 during the soldering process, a prebaking procedure is strongly recommended. Bake the chip at 125 degrees Celsius for 24 hours. This critical step removes any absorbed moisture from the component package, effectively preventing delamination or "popcorning" effects when the chip is exposed to high reflow soldering temperatures. Adhering to this prebaking protocol significantly enhances the reliability of the soldering joint and the long-term performance of the controller in your specific application.
Identifying Your TPS51120 Controller Purchase

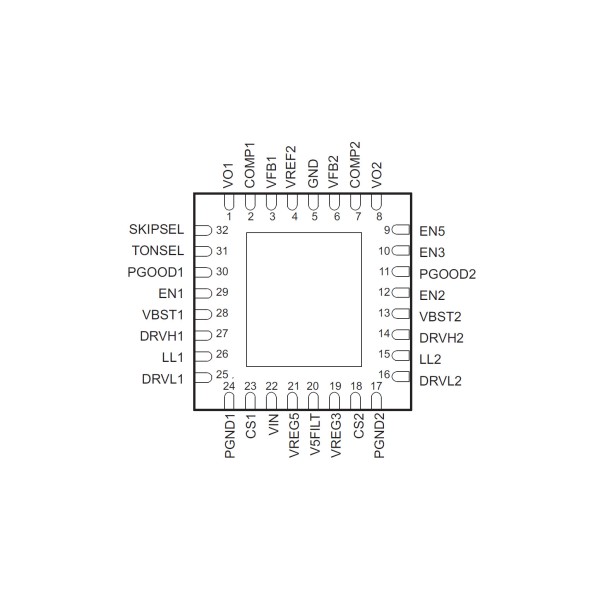

You will receive two brand new TPS51120 dual synchronous step-down controllers per order. The chips may carry various authentic markings such as TPS51120, TPS 51120 TI, 51120, TPS51120RHB, or 51120RHB, all referring to the same high-quality Texas Instruments component. These controllers are supplied in a reel package, indicative of their new condition, though sold here as a set of two pieces. The product images displayed are of the actual items that are for sale and will be shipped.
Warranty and Purchase Considerations
Your purchase of these TPS51120 controllers is backed by a 180-day warranty, offering you peace of mind. We are confident in the quality of these brand new components. Please ensure you possess the necessary technical skills and appropriate equipment, such as a hot-air soldering station and a pre-heating station, before proceeding with your purchase. This item is intended for individuals experienced in surface-mount device (SMD) rework and electronics repair. Correct installation is vital for the optimal performance of these advanced power management ICs.
