BQ24740 Battery Charging Synchronous Buck Converter IC

Advanced Battery Charging Control

The Texas Instruments BQ24740 is a high-efficiency synchronous buck converter designed for advanced battery charging applications. It provides precise control over charging voltage and current, making it an essential component in modern portable electronics. This integrated circuit excels at managing power flow from an adapter to the system and the battery, ensuring optimal performance and safety. When you need a reliable charging solution, you can order this component for your repair or manufacturing needs. This specific integrated circuit is for sale and ready for immediate dispatch.

High-Efficiency Synchronous Operation

Operating as a synchronous buck converter, the BQ24740 minimizes power loss and improves thermal performance compared to non-synchronous alternatives. This efficiency is critical for battery-powered devices like notebooks and tablets, where extending battery life and reducing heat are paramount. Its wide input voltage range accommodates various adapters, providing flexibility in system design. The chip, also known by markings BQ24740RHDR and 24740 TI, is engineered for robust and reliable power conversion, making it a professional choice for demanding applications.

Ideal for Laptop and Portable Device Repair

This BQ24740 integrated circuit is a common component found on the motherboards of many laptops and other portable electronics. It often serves as the primary controller for the battery charging circuit. If your device is failing to charge its battery, displaying incorrect battery levels, or not recognizing the AC adapter, a faulty charging IC like this could be the culprit. Technicians with the right skills can use this component to perform board-level repairs, offering a cost-effective alternative to replacing an entire motherboard. This part is available to help you complete your repairs successfully.

Package and Physical Specifications

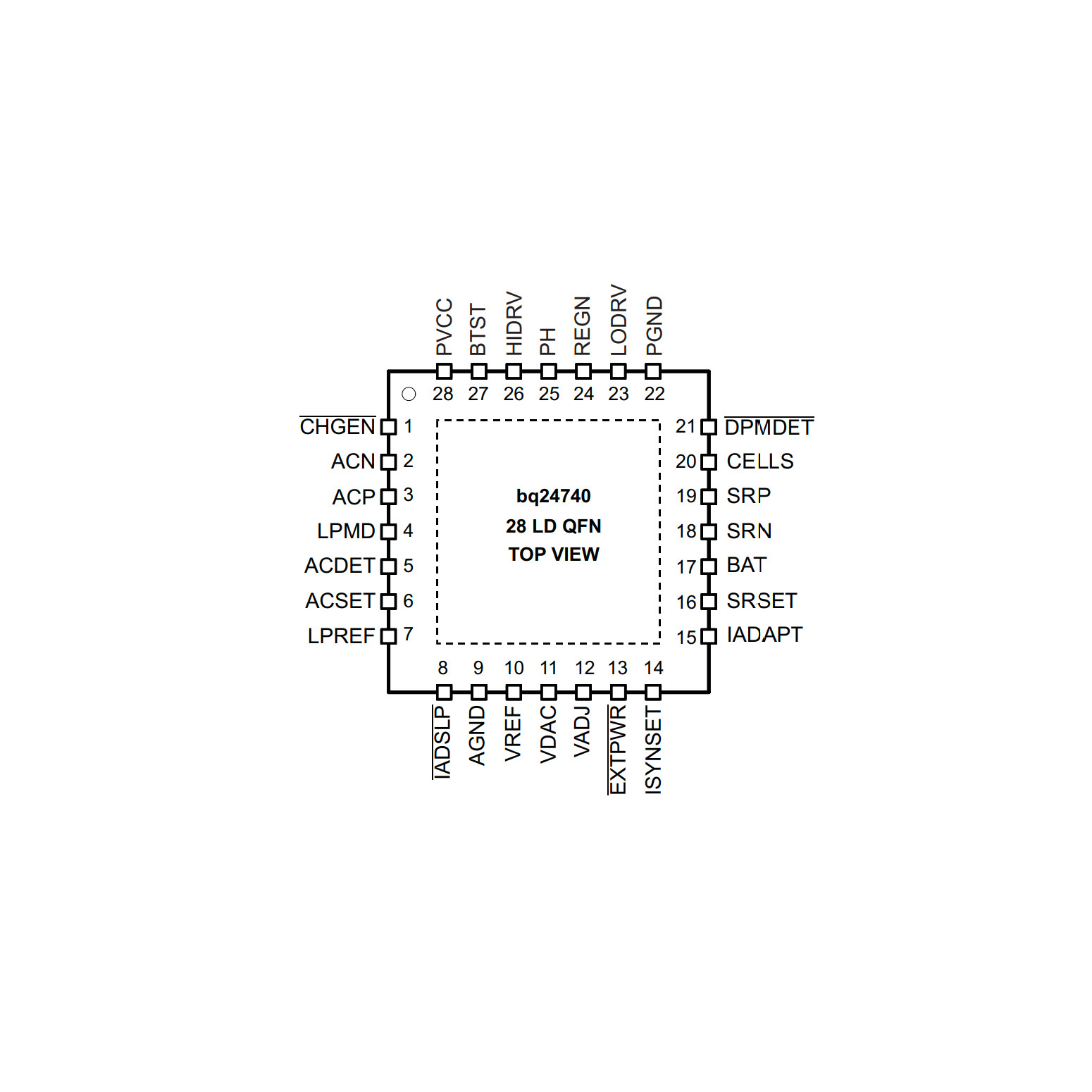

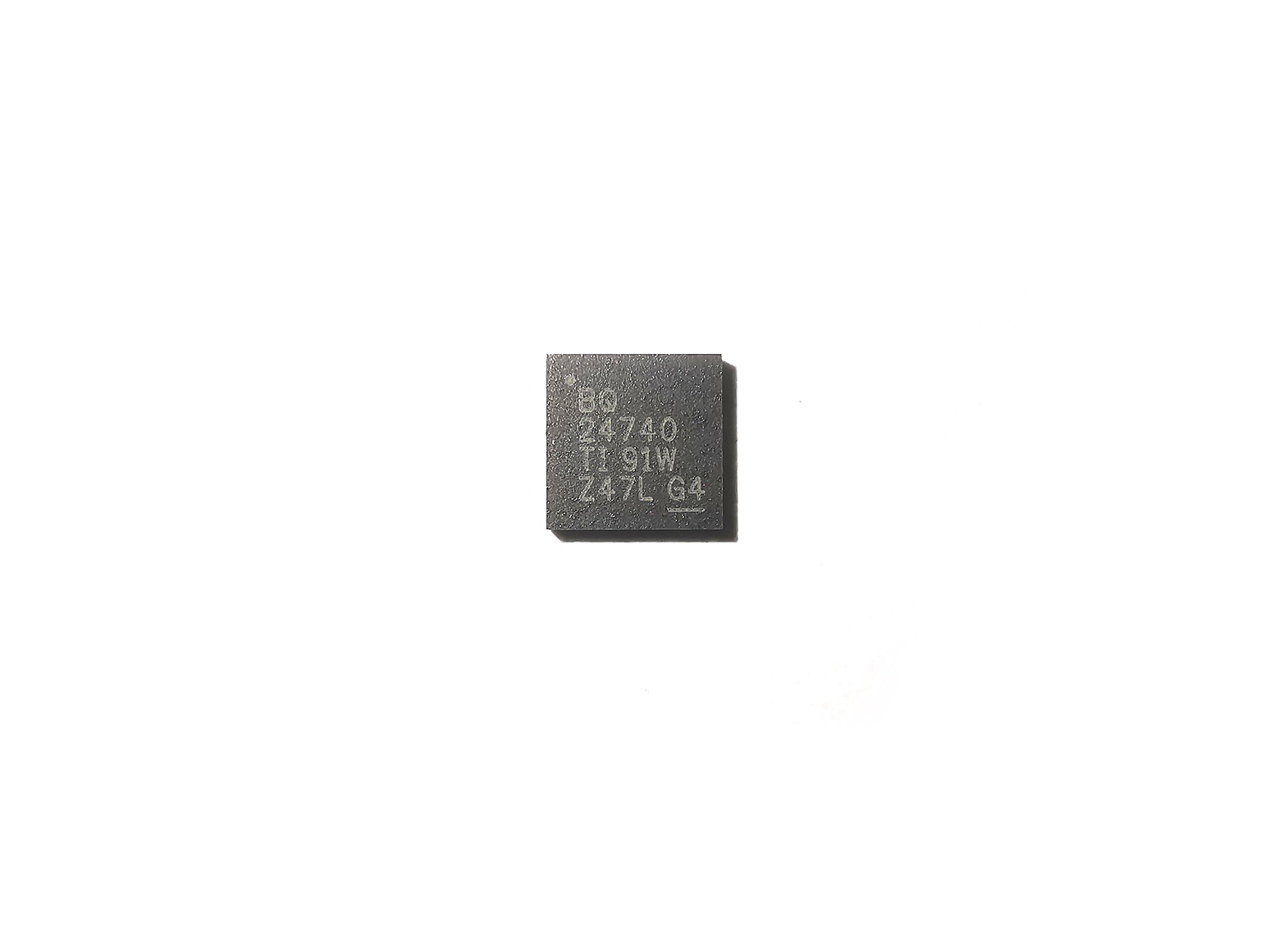

The BQ24740 comes in a 28 LD QFN (Quad Flat No-lead) package. This is a surface-mount package with a small footprint, making it ideal for space-constrained designs in modern electronics. The compact size requires precision and specialized equipment for installation. Our listing is for two brand new pieces, supplied in a reel package to ensure they are protected during transit and storage. The provided images are of the actual item, so you can see exactly what you will get when you purchase this part.

Professional Installation Required

Please note that replacing this component is a task for experienced technicians. A successful replacement requires specialized tools, including a hot-air soldering station for removal and installation, and a pre-heating station to prevent thermal shock to the PCB. You should only order this item if you have the necessary skills and equipment for surface-mount device (SMD) rework. Proper technique is essential to avoid damaging the component or the motherboard during the repair process. This is not a task for beginners in electronics.

Important Handling and Preparation

This integrated circuit is a moisture-sensitive device and also highly susceptible to Electrostatic Discharge (ESD). It is crucial to handle the chip using proper ESD-safe practices, such as wearing an anti-static wrist strap and working on an ESD-protected surface. Before soldering, it is mandatory to prebake this chip at 125 degrees Celsius for a full 24 hours. This process removes any absorbed moisture, which prevents the chip from being damaged by the rapid heating (popcorning effect) during the reflow soldering process, ensuring a successful installation.

Guaranteed Authenticity and Quality

This listing is for two pieces of the genuine BQ24740 battery charging converter from Texas Instruments. The components are brand new and have not been pulled from used equipment, guaranteeing their performance and reliability. By using authentic parts like the BQ24740RHDR, you ensure compatibility and adherence to the original manufacturer's specifications. These quality components are in stock and can be a vital part of a successful and lasting electronics repair. We are committed to providing only authentic parts for your technical needs.

Warranty and Worldwide Availability

To give you confidence in your purchase, this product includes a 180-day warranty. We stand by the quality of our components. This item is currently available and ready for your project. We offer fast worldwide shipping and fast international delivery options to ensure you receive your parts quickly, minimizing downtime for your repairs or production. You can get this essential component delivered directly to your workshop, wherever you are located, allowing you to proceed with your work without unnecessary delays.
