PCB Board 100277699 Rev A for Seagate ST380012ACE Drive
Find the PCB board 100277699 Rev A for your Seagate U Series 9 ST380012ACE hard drive. This logic board is an essential part for data recovery or repair. Fast delivery with tracking across Europe and worldwide. Product Code: 100277699 Rev A
Delivery time and cost
In Stock: 1
View on eBay
Essential Replacement for Seagate Hard Drives
This PCB board, identified as 100277699 Rev A, is a crucial replacement part for the Seagate U Series 9 80 GB hard drive with model number ST380012ACE. As the main logic board, it controls the hard drive's operations. If your drive has suffered electronic damage, such as from a power surge, replacing the printed circuit board is often the primary step towards a successful repair or data recovery. This specific component is available for you to purchase and restore your hard drive to working order.
PCB Board Identification and Markings

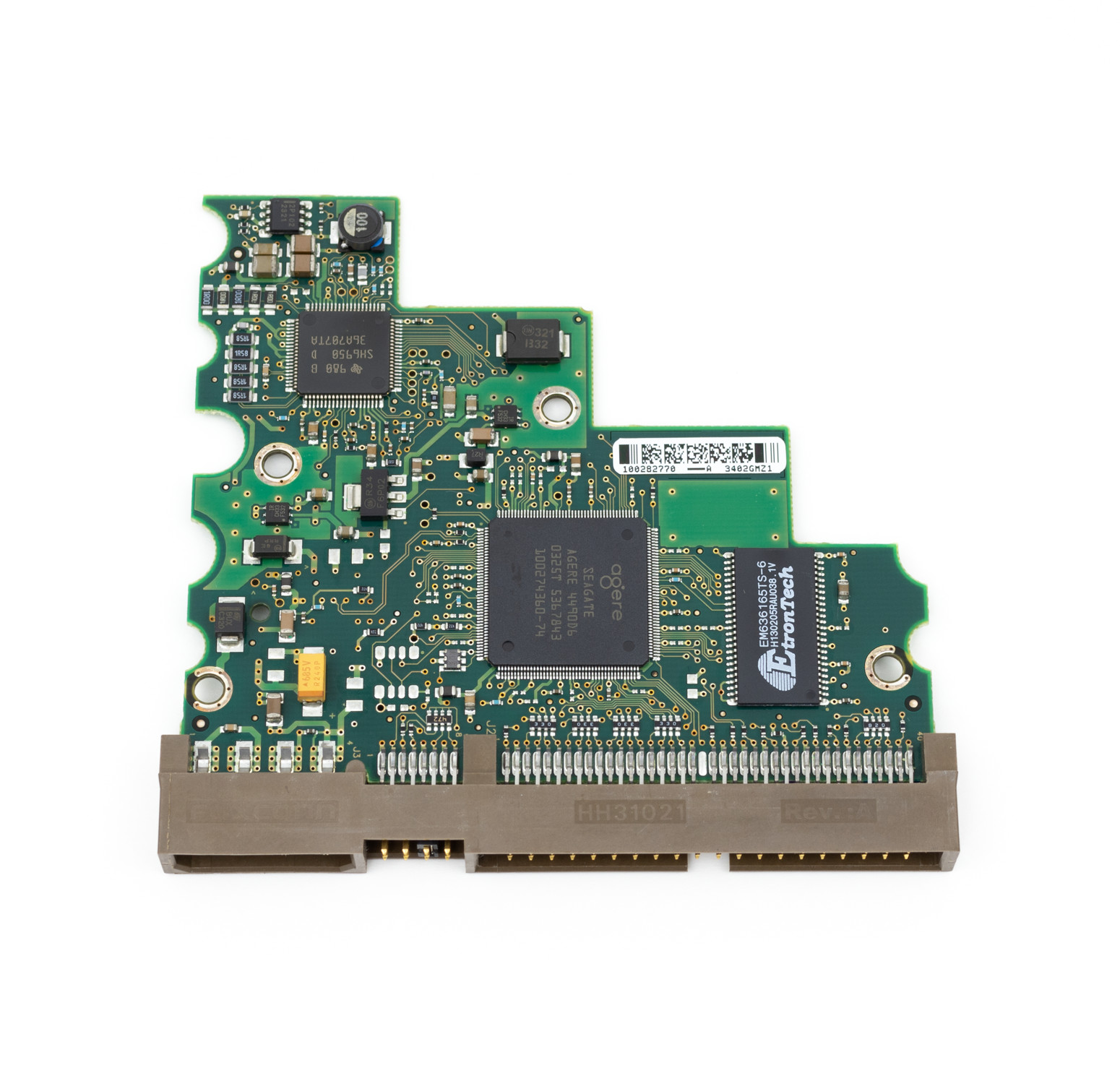

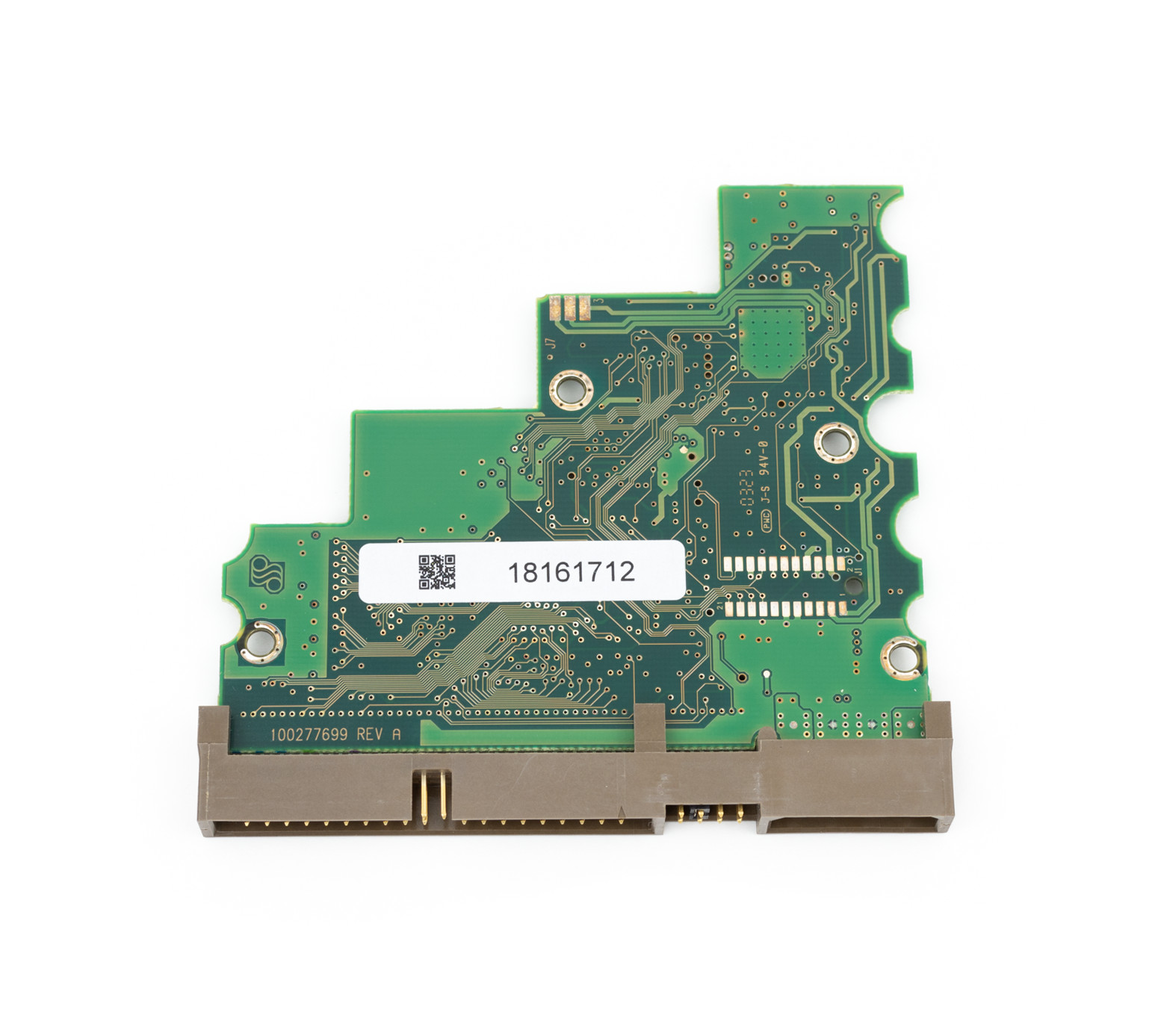

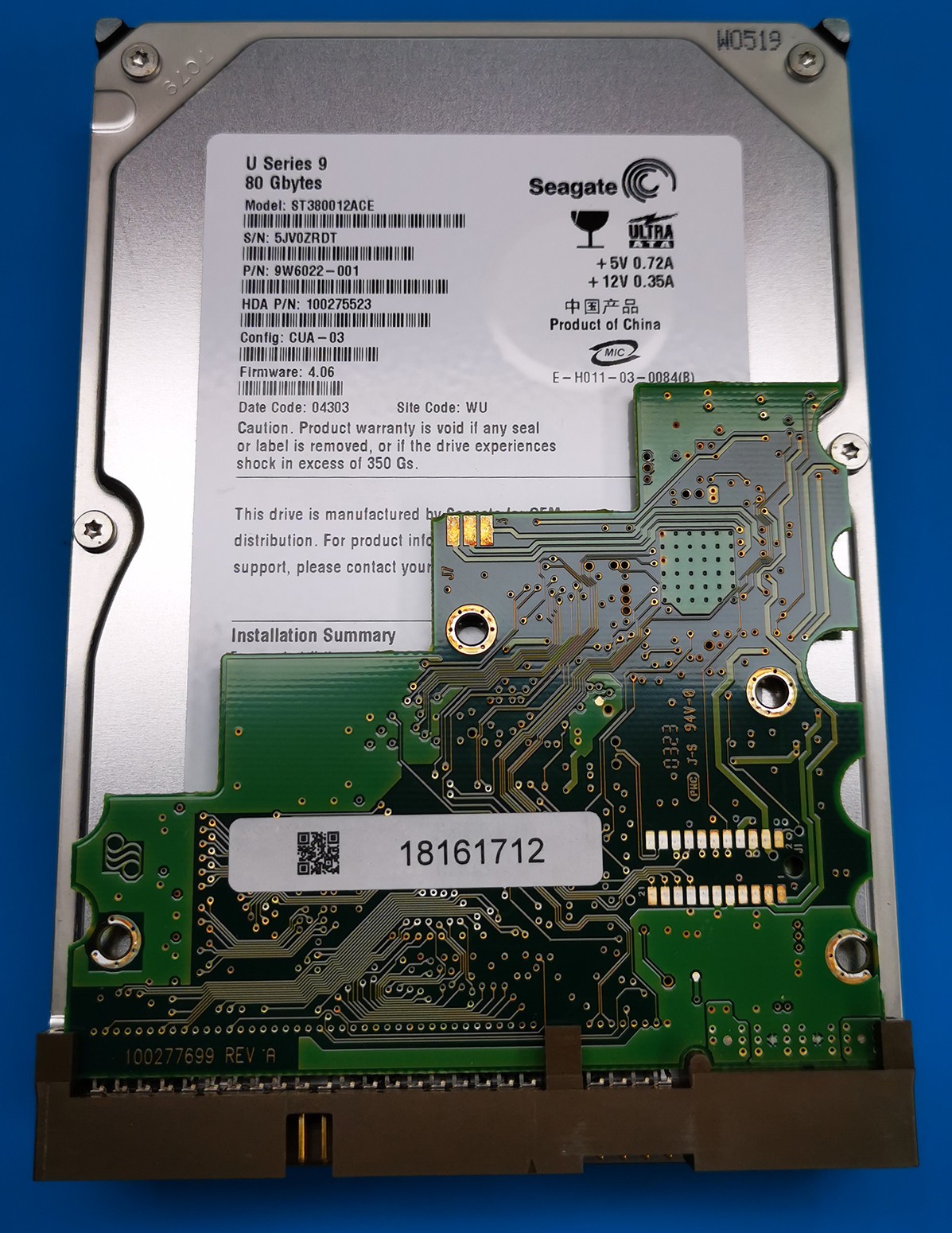

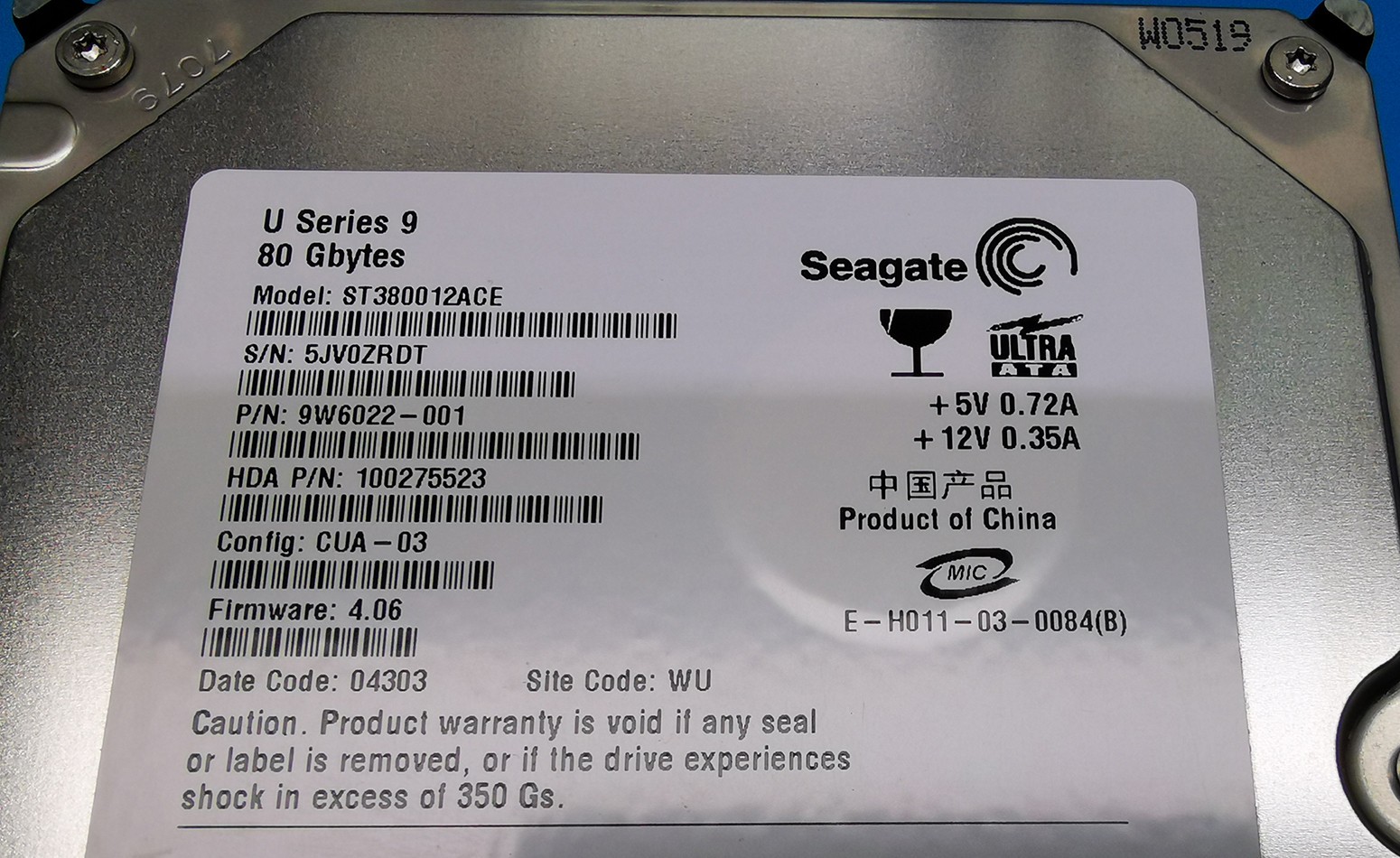

To ensure full compatibility, it is vital to match the numbers on your original board with this replacement. This board features the primary marking 100277699 Rev A. Additional identifiers include the number 100282770 and the AGERE 4490D6 controller chip. It corresponds to HDD P/N 9W6022 - 001, HDA P/N 100275523, and Config CUA - 03. The original drive firmware was version 4.06, with a Date Code of 04303 and Site Code of WU. Cross-referencing these details is key before you order.
Your Solution for Hard Drive Data Recovery
When a hard drive fails to spin up or is not detected by a computer, the cause is often a faulty PCB. This replacement logic board is for sale as a solution for these exact scenarios. By swapping the damaged board with this functional one, you can often revive the drive, providing access to your irreplaceable files, documents, and memories. This is a common practice in the data recovery industry, and this part allows you to perform the crucial first step of the repair process yourself.
Understanding the Firmware Transfer Process
Please be aware that most modern hard drive repairs require more than a direct board swap. The unique adaptive data, or firmware, stored on a ROM or NV-RAM chip on your original board must be transferred to this replacement. This procedure involves carefully desoldering the chip from the old board and soldering it onto the new one. In some cases, the firmware is located on the Main Controller IC, making the transfer more complex. This task demands specialized tools and technical expertise in micro-soldering.
Compatibility with Seagate U Series 9
This circuit board is specifically designed for the Seagate U Series 9 80 GB hard drive, model ST380012ACE. It utilizes an IDE connector, which is important for compatibility with systems that use this interface. If you are trying to repair or recover data from this particular hard drive model, this is the correct component to get. Ensuring you have a matching model and connector type is the best way to guarantee a successful repair when you shop for replacement parts for your storage devices.
Tested and Functional Replacement Part
You can purchase with confidence knowing this PCB is in fully working condition. It has been professionally sourced from a donor hard drive that had mechanical issues (bad sectors), meaning its electronics were unaffected and are fully operational. The item has been tested to ensure functionality. The pictures displayed on this page are of the actual item you will receive, not stock photos. This board is in stock and ready to be part of your repair project.
What You Will Receive
Your order includes one PCB board with the part number 100277699 Rev A. It is important to note that only the printed circuit board is for sale. The hard drive mechanism, cables, tools, or any other accessories that may appear in the photographs for illustrative purposes are not part of this purchase. This clear offering helps you understand exactly what you will receive, ensuring a straightforward and satisfactory transaction when you place your order for this essential hard drive component.
Fast Worldwide Shipping Information
We are pleased to offer fast worldwide shipping for this product. You can get this replacement part delivered to your doorstep efficiently. For customers within Europe, the typical delivery time is approximately 4 to 8 days. For all other global destinations, our fast international delivery service may require a few additional days for transit. Every item is packaged with care to ensure it arrives safely, allowing you to begin your data recovery or repair project as soon as possible after your purchase.
Description
- PCB markings: 100277699 Rev A, 100282770, AGERE 4490D6
- Connector type: IDE
- HDD: Seagate U Series 9 80 GB
- HDD Model: ST380012ACE
- HDD P/N: 9W6022 - 001
- HDA P/N: 100275523
- Config: CUA - 03
- Firmware: 4.06
- Date Code: 04303
- Site Code: WU
Details

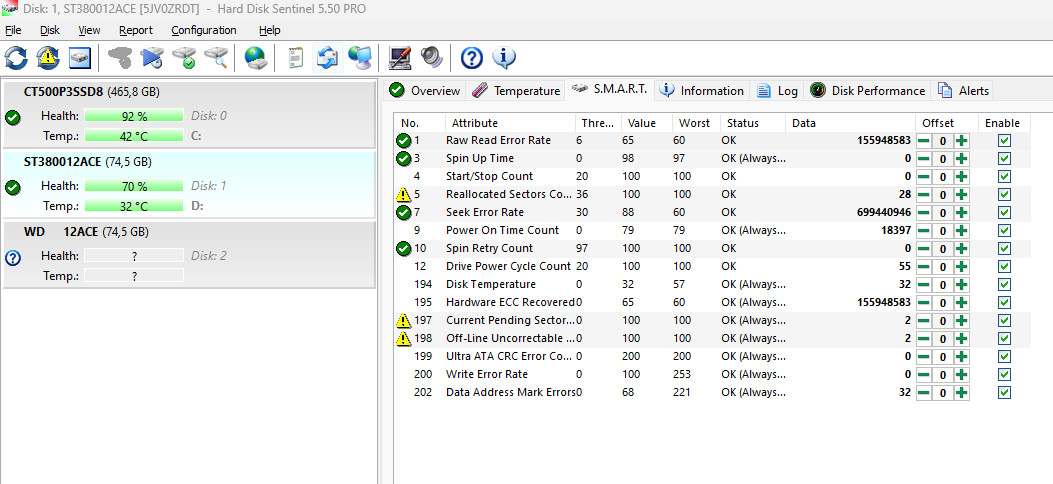

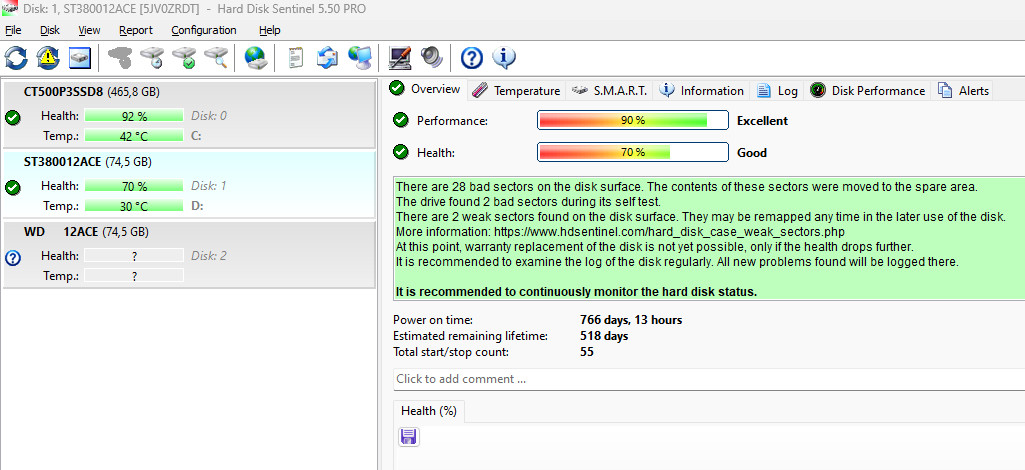

- The PCB is in fully working condition, coming from a hard drive with bad sectors.
- Please note: Some hard drives require firmware transfer from the original PCB board to the new one for proper functionality. This procedure necessitates the removal of the ROM or NV-RAM chip from the original PCB and soldering it onto the new one. In certain instances, the firmware may reside within the Main Controller IC. This can be a challenging task requiring specialized tools and expertise.
- Only the PCB is for sale; other objects that may be shown in the pictures, such as hard drives or additional accessories, are not included.
- Delivery within Europe typically takes approximately 4 to 8 days, with a few additional days required for other international destinations.
- The pictures provided are of the actual item for sale.
