Seagate Barracuda 160GB PCB Board 100336321 REV A Logic
$19.55
-15%
3 people are viewing this
PCB Board 100277699 Rev A for Seagate ST380012ACE Drive
Find a reliable replacement PCB board 100277699 Rev A for your Seagate U Series 9 80GB ST380012ACE hard drive. Ideal for data recovery and repair tasks. Fast delivery with tracking across Europe and worldwide. Product Code: 100277699 Rev A
Delivery time and cost
In Stock: 1
View on eBay
Essential Hard Drive Repair Component
This logic board, with part number 100277699 Rev A, is a crucial component for repairing Seagate U Series 9 hard drives. If your hard drive has stopped working due to a faulty circuit board, this replacement part could be the solution you need to access your important files. It's a common choice for data recovery specialists and tech-savvy individuals aiming to restore a non-functional drive. This specific controller board is available and in stock, ready to be dispatched for your repair project.
Detailed Board Specifications

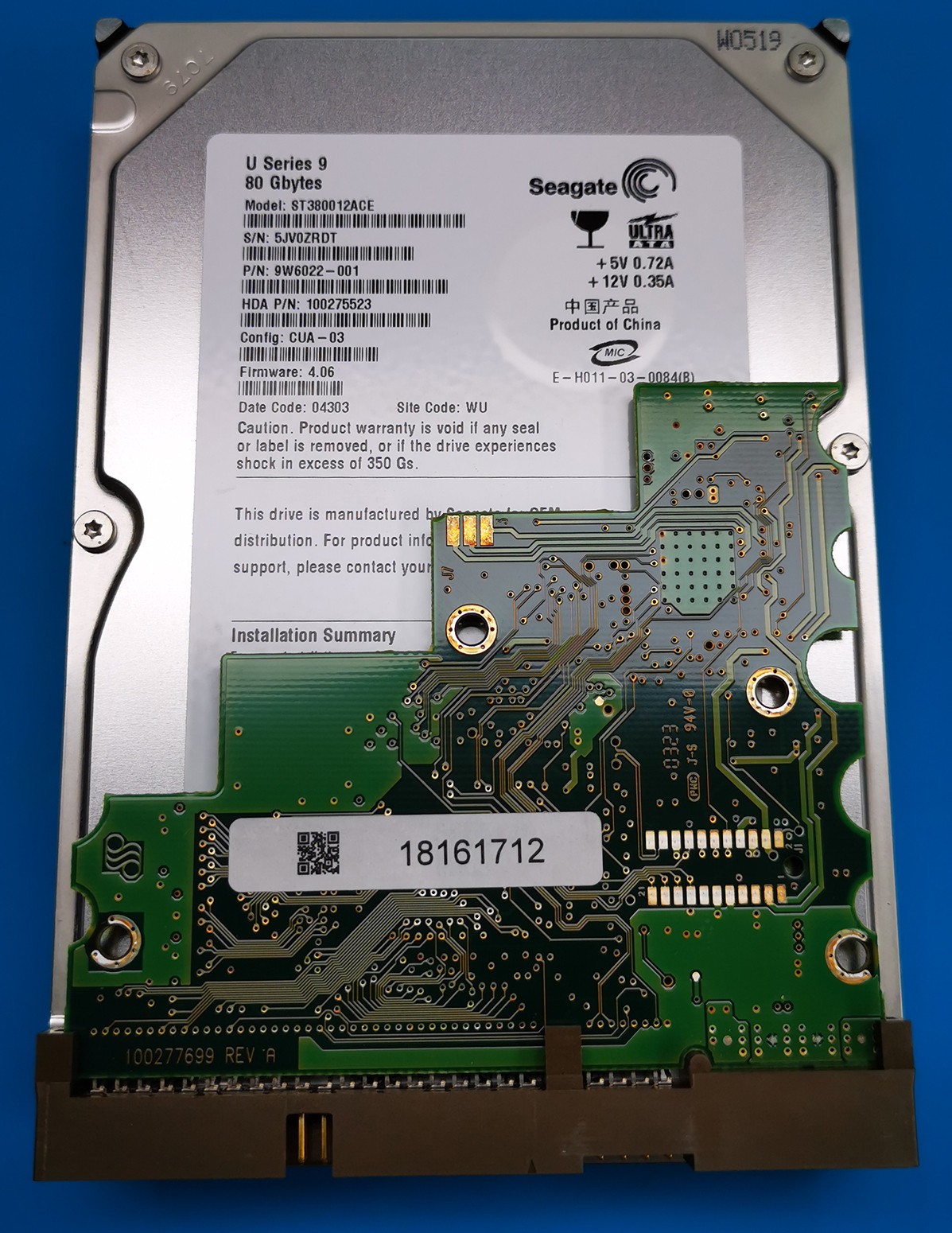

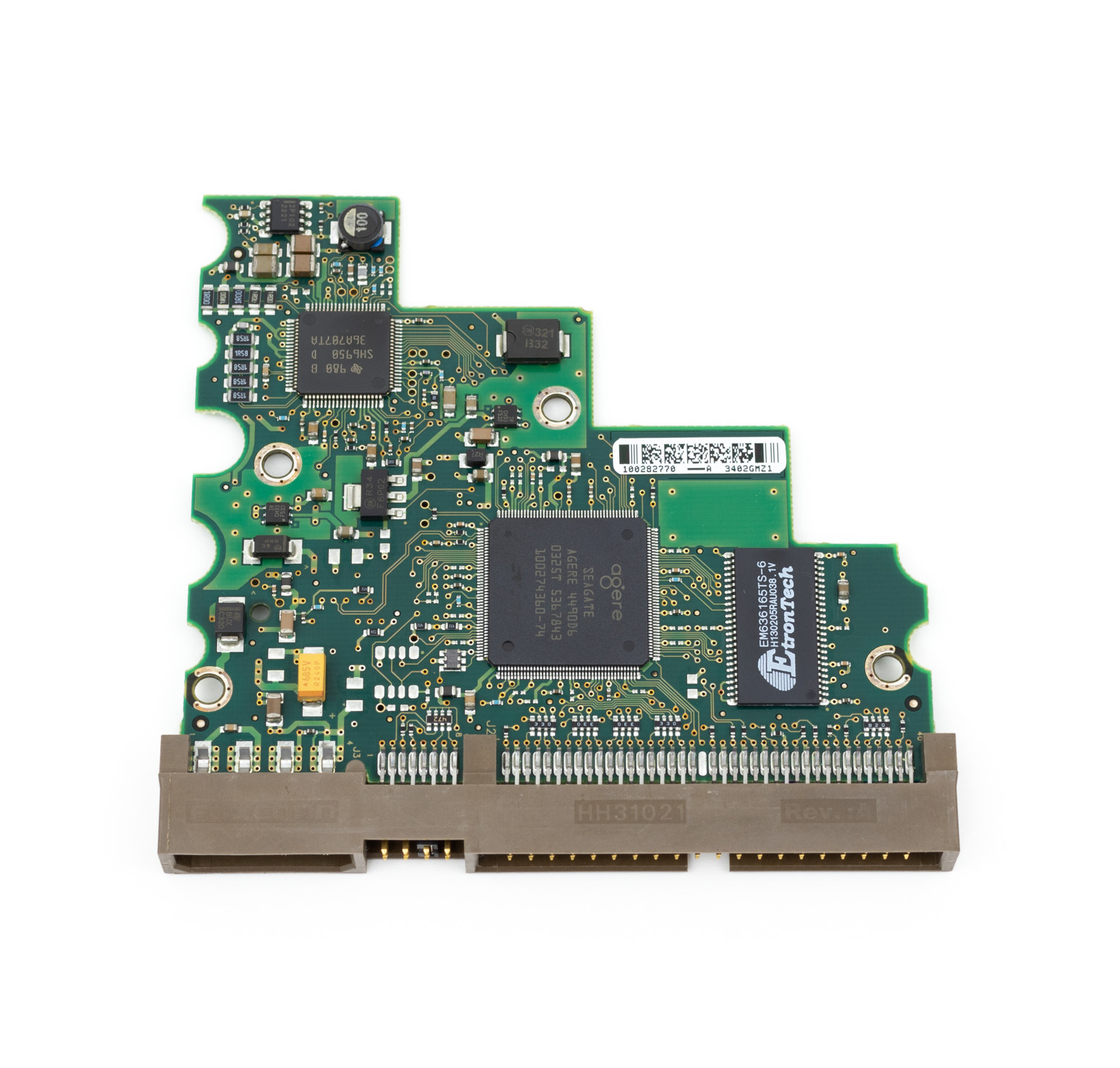

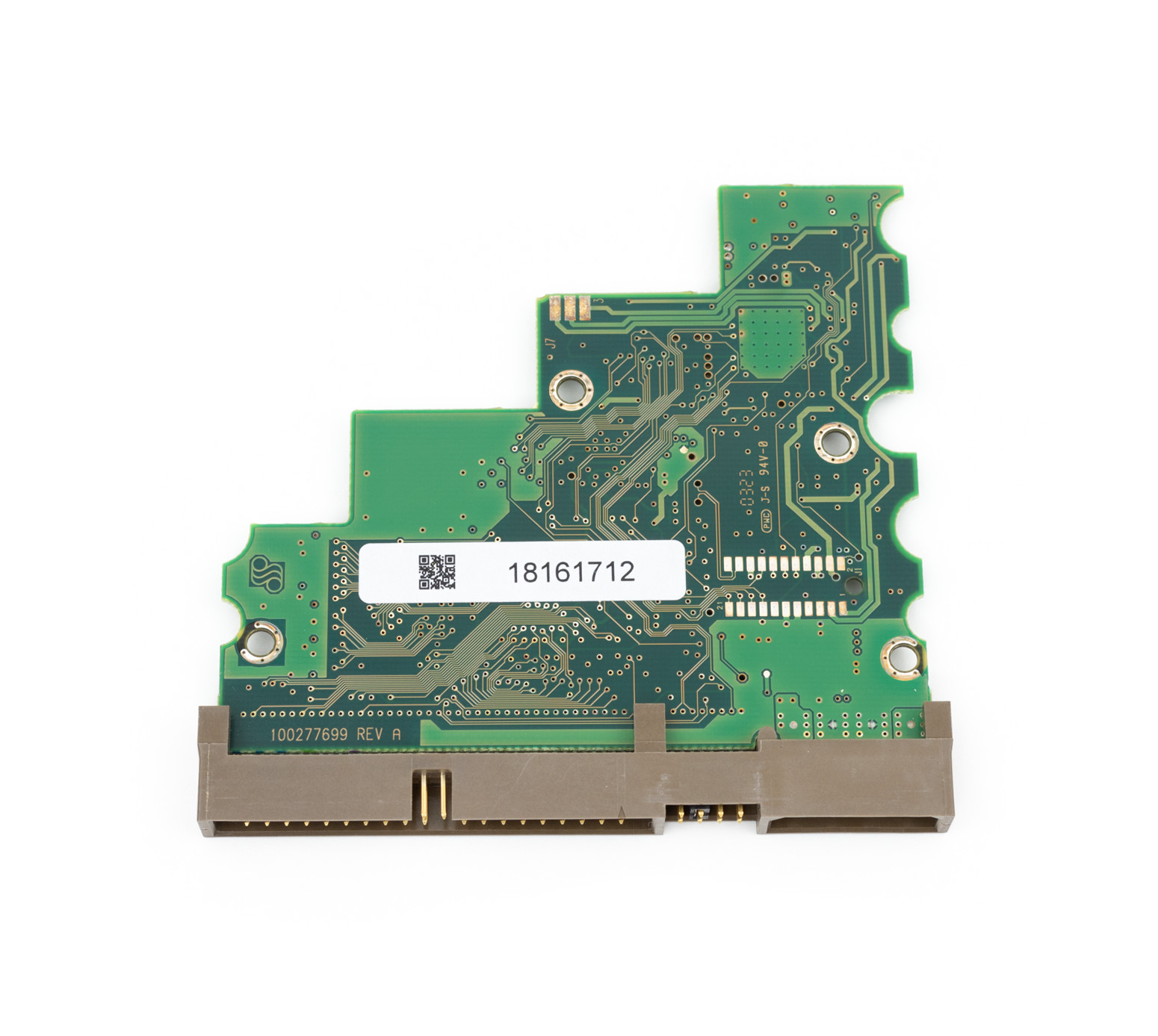

This printed circuit board is precisely identified by its markings: 100277699 Rev A. Additional identifiers on the board include the number 100282770 and the AGERE chip controller marked 4490D6. It features a standard IDE connector, which was common for drives of its era, ensuring compatibility with the correct hardware interface. Verifying these numbers against your original board is the best way to ensure you purchase the correct part for a successful repair or data recovery attempt. Get the exact match for your drive.
Seagate Hard Drive Compatibility

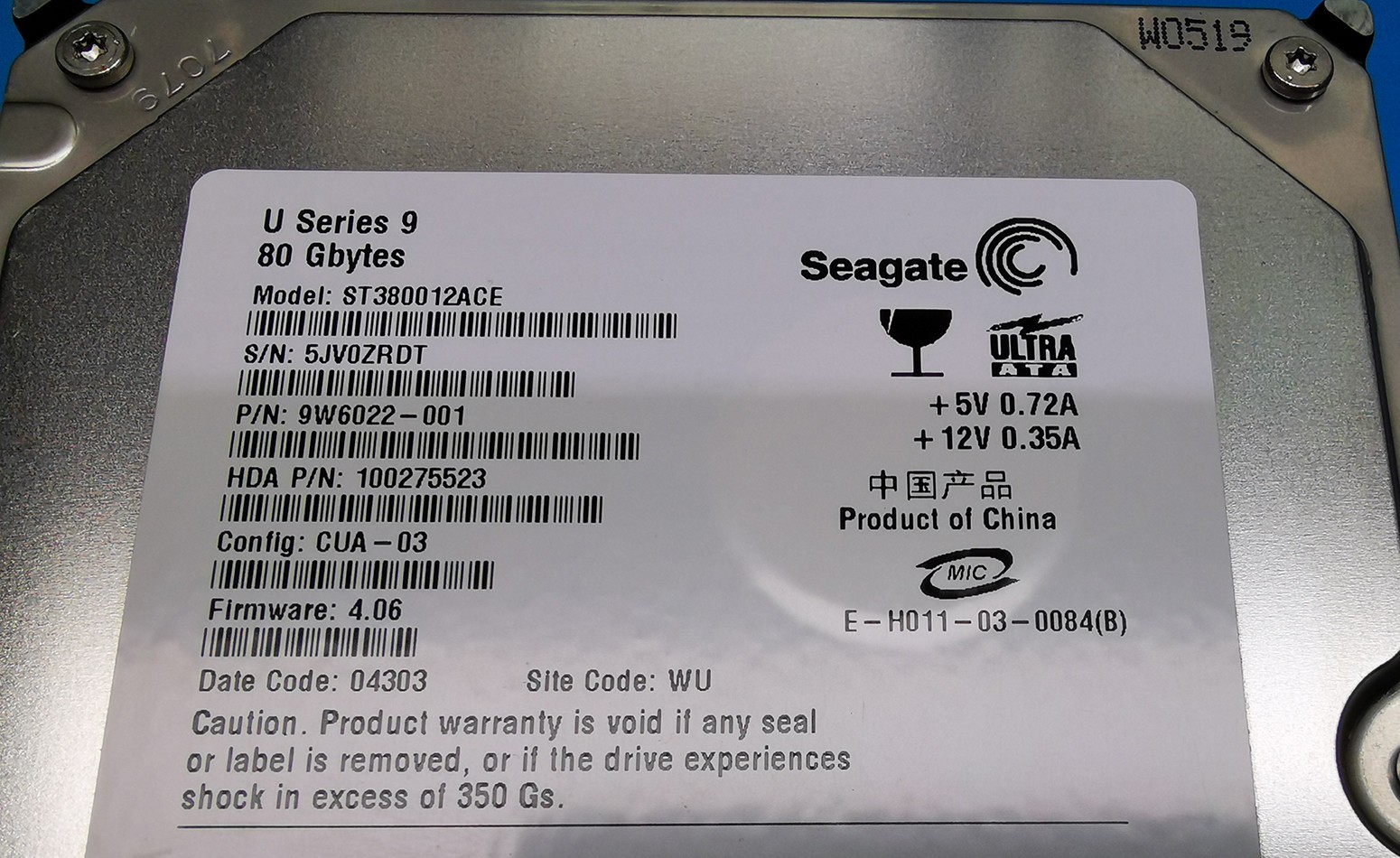

This PCB is specifically designed for the Seagate U Series 9 80 GB hard drive with the model number ST380012ACE. It's vital to match your drive's model number to guarantee compatibility. Other important identifiers from the original hard drive include the HDD Part Number 9W6022 - 001 and the Head and Disk Assembly (HDA) Part Number 100275523. This level of detail helps confirm you are about to order the correct component for your specific Seagate drive.
Firmware and Configuration Details
This board was originally paired with a drive running firmware version 4.06. Other configuration details from the source drive include the configuration code CUA - 03, a date code of 04303, and the site code WU. While this information is provided for reference, the most critical aspect for a successful swap is often the firmware stored on the ROM chip of your original board. This specific board is for sale and ready for your technical project, providing a solid foundation for your drive repair.
Important: The Firmware Transfer Process
For your hard drive to recognize this replacement board, a firmware transfer is typically required. This involves carefully desoldering the ROM or NV-RAM chip from your original, faulty PCB and soldering it onto this new board in the same position. In some cases, the firmware is located on the Main Controller IC. This is a delicate procedure that requires professional soldering skills and specialized tools. We advise that this task is undertaken by an experienced technician to avoid permanent damage to the chip or board.
Condition and Authenticity Guaranteed
This PCB is a used part that has been carefully removed from a working drive which had developed bad sectors, meaning the board itself is in fully functional condition. We ensure that the product you receive is the exact one shown in the pictures, providing complete transparency. You can be confident in the authenticity and operational status of the board you get. We believe in providing reliable components for your critical data recovery needs, and this item is a testament to that commitment.
What You Will Receive
Please note that this listing is exclusively for the PCB board 100277699 Rev A. Any other items that may appear in the photographs, such as the full hard drive, tools, or other accessories, are for illustrative purposes only and are not included in your purchase. You will receive the single controller board, professionally packaged to ensure it arrives safely. This clarity ensures there are no surprises when you receive your order, allowing you to prepare for your repair with confidence.
Shipping and Availability
This essential hard drive component is in stock and available for immediate dispatch. We provide fast worldwide shipping to get this part to you as quickly as possible. Delivery to European destinations generally takes between 4 and 8 days. For all other international destinations, please allow a few additional days for transit. You can confidently place your order knowing we facilitate fast international delivery, helping you minimize downtime and proceed with your data recovery or repair project promptly.
Description
- PCB markings: 100277699 Rev A, 100282770, AGERE 4490D6
- Connector type: IDE
- HDD: Seagate U Series 9 80 GB
- HDD Model: ST380012ACE
- HDD P/N: 9W6022 - 001
- HDA P/N: 100275523
- Config: CUA - 03
- Firmware: 4.06
- Date Code: 04303
- Site Code: WU
Details
- The PCB is in fully working condition, coming from a hard drive with bad sectors.
- Please note: Some hard drives require firmware transfer from the original PCB board to the new one for proper functionality. This procedure necessitates the removal of the ROM or NV-RAM chip from the original PCB and soldering it onto the new one. In certain instances, the firmware may reside within the Main Controller IC. This can be a challenging task requiring specialized tools and expertise.
- Only the PCB is for sale; other objects that may be shown in the pictures, such as hard drives or additional accessories, are not included.
- Delivery within Europe typically takes approximately 4 to 8 days, with a few additional days required for other international destinations.
- The pictures provided are of the actual item for sale.
