Seagate PCB Board 100277699 Rev A for ST380012ACE Drive

Essential Hard Drive Repair Component

This replacement PCB board is a crucial component for repairing or recovering data from a non-functional hard drive. When a drive's electronics fail, but the internal platters remain intact, swapping the logic board can often restore access to your valuable files. This specific controller board is for sale and has been carefully tested to ensure it is in fully working condition. It provides a reliable solution for IT professionals and data recovery specialists looking to service a compatible Seagate hard drive. Get the part you need for your repair project.

Guaranteed Drive Compatibility

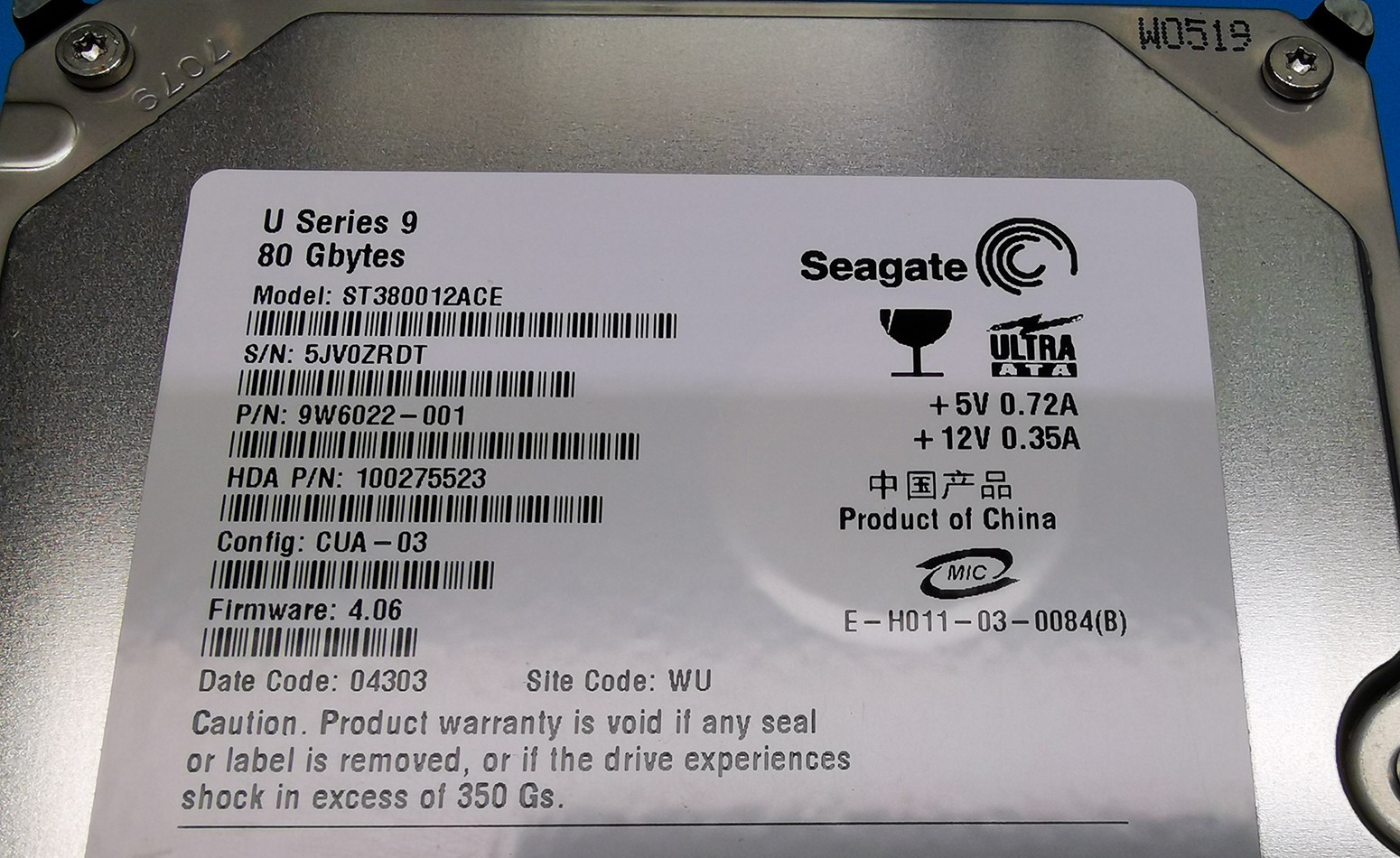

To ensure a successful repair, it is vital to match the PCB board not just by brand but by specific model and part numbers. This logic board is compatible with the Seagate U Series 9 80 GB hard disk drive, specifically model ST380012ACE. Please verify that your drive's part numbers match, including HDD P/N 9W6022 - 001 and HDA P/N 100275523. Mismatched boards can prevent the drive from functioning, so confirming these details before you order is the most important step in the process.

Authentic PCB Board Specifications

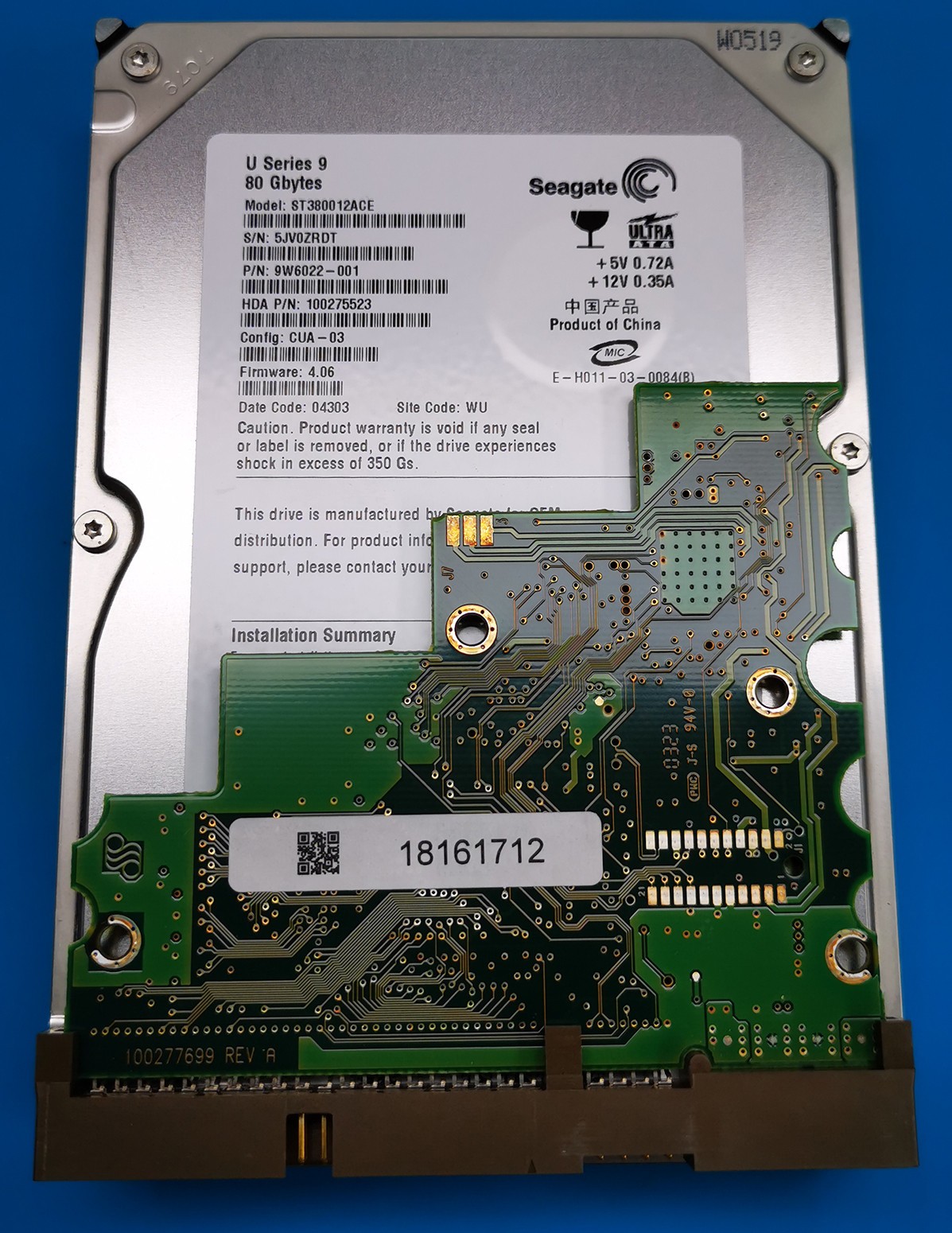

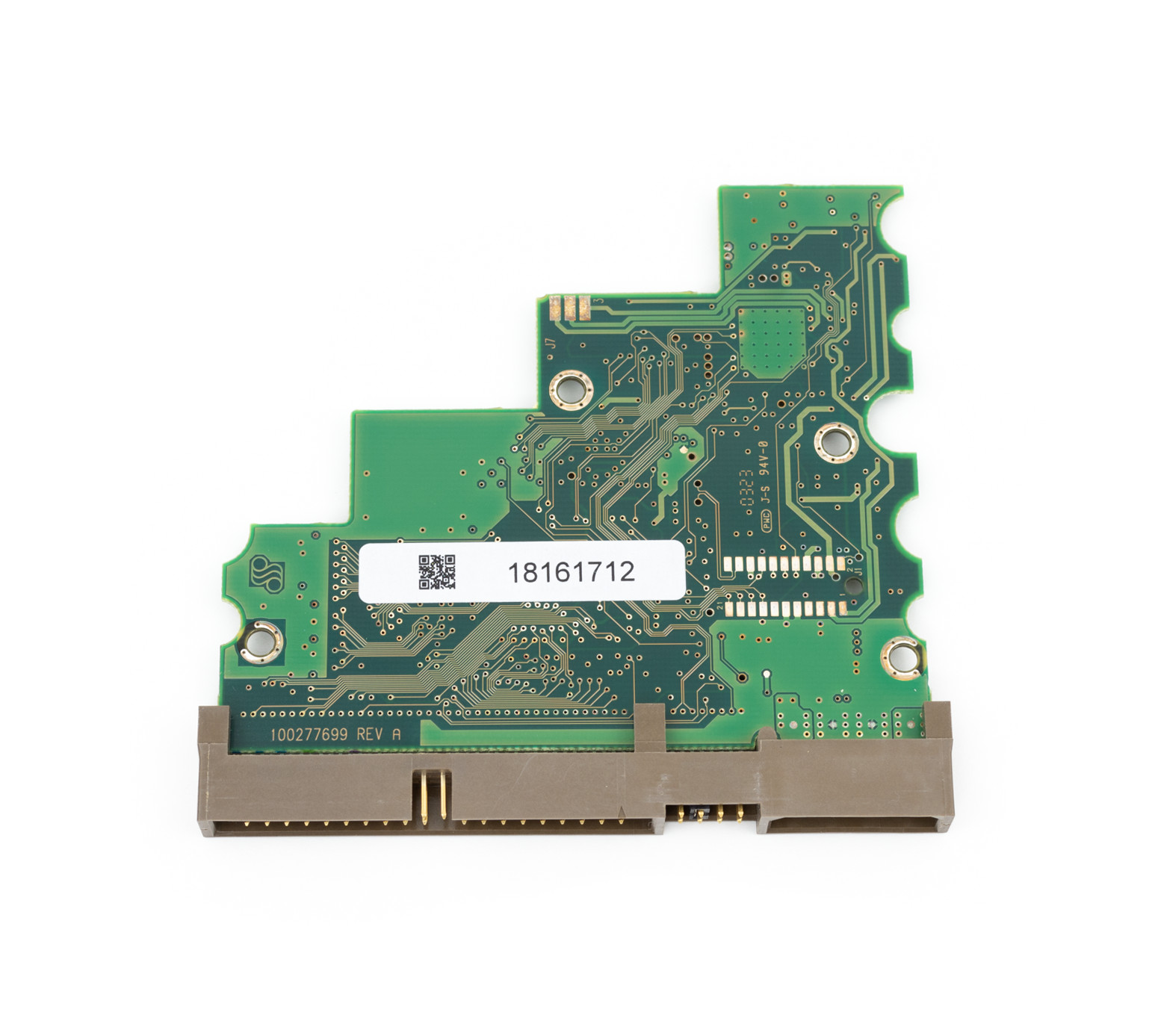

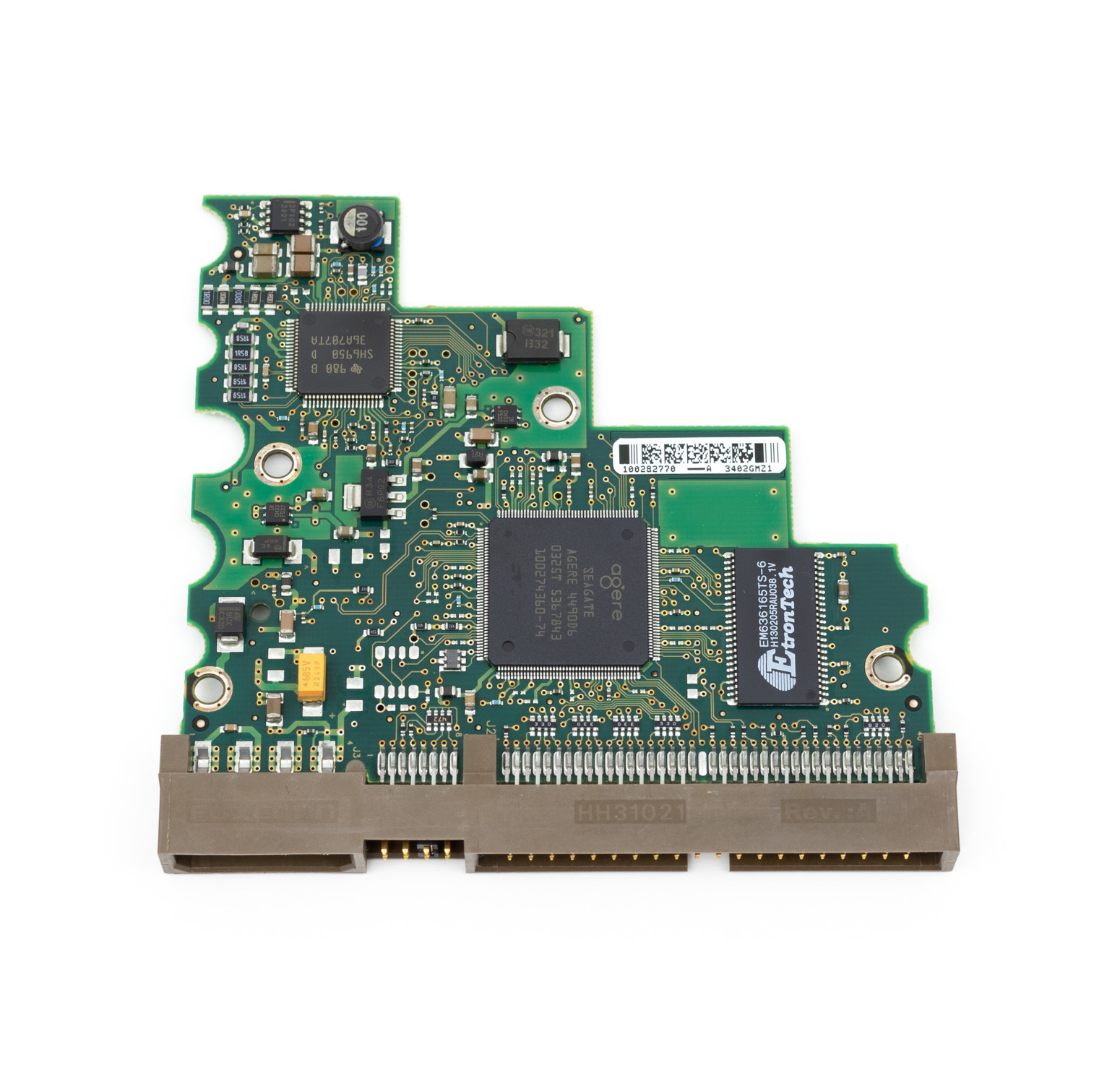

This circuit board features the primary marking 100277699 Rev A, which is the main identifier you should match with your original board. Additional markings on the board include 100282770 and an AGERE 4490D6 chip. These identifiers are unique to this specific version of the PCB and are key to confirming its suitability for your drive. The pictures provided are of the actual item you will receive, allowing you to visually verify every detail and component placement before making your purchase, ensuring complete confidence in what you get.

Critical Firmware Transfer Information

For this PCB board to work with your hard drive, a firmware transfer is typically required. This is because the unique adaptive data for your drive is stored on a ROM or NV-RAM chip on the original board. This chip must be carefully desoldered from your old PCB and re-soldered onto this replacement board. In some cases, the firmware might be located on the Main Controller IC. This procedure demands specialized soldering equipment and technical expertise, and it is not a simple plug-and-play swap.

Designed for Technical Experts

This product is intended for individuals with experience in electronics repair and data recovery. The process of transferring the firmware chip requires a steady hand, the right tools, and a solid understanding of PCB rework. If you are not comfortable with micro-soldering, it is highly recommended to seek professional assistance. This ensures the delicate components are not damaged during the transfer, maximizing your chances of a successful data recovery or hard drive repair. The board is available for those with the required skills.

What to Expect with Your Order

This listing is for the PCB board 100277699 Rev A only. Any other items shown in the photos, such as the full hard drive, are for illustrative purposes and are not included. The board itself has been sourced from a donor hard drive that had bad sectors, meaning the mechanical parts were failing but the electronics were not. It has been tested and confirmed to be in fully working condition, ready for your repair project. The item is in stock and prepared for dispatch.

Detailed Technical Identifiers

In addition to the main part numbers, this board is associated with specific configuration and firmware details that can be useful for precise matching. These include Config: CUA - 03, Firmware: 4.06, Date Code: 04303, and Site Code: WU. The board utilizes a standard IDE connector, which is typical for drives of this era. Ensuring these secondary identifiers align with your original drive's specifications can further increase the probability of a successful and straightforward repair process. This information is provided for complete transparency.

Reliable and Fast International Delivery

We understand that you need your parts promptly to proceed with your data recovery or repair. That's why we offer fast international shipping on every order. Delivery to destinations within Europe generally takes between four to eight days. For all other international locations, please allow for a few additional days for transit. You can be confident that your purchase will be dispatched quickly. This genuine Seagate PCB board is in stock and ready for fast worldwide delivery to your location.
